A Canadian ship design and research company is presenting
several unusual looking new technologies for ocean-going and inland waterway
vessels which they report can increase the ship’s capacity and speed while
reducing construction costs. NaviForm Consulting & Research, based in
Vancouver, Canada reports that it has already been granted four patents in the
US, European Union, and other countries with three additional patents pending.

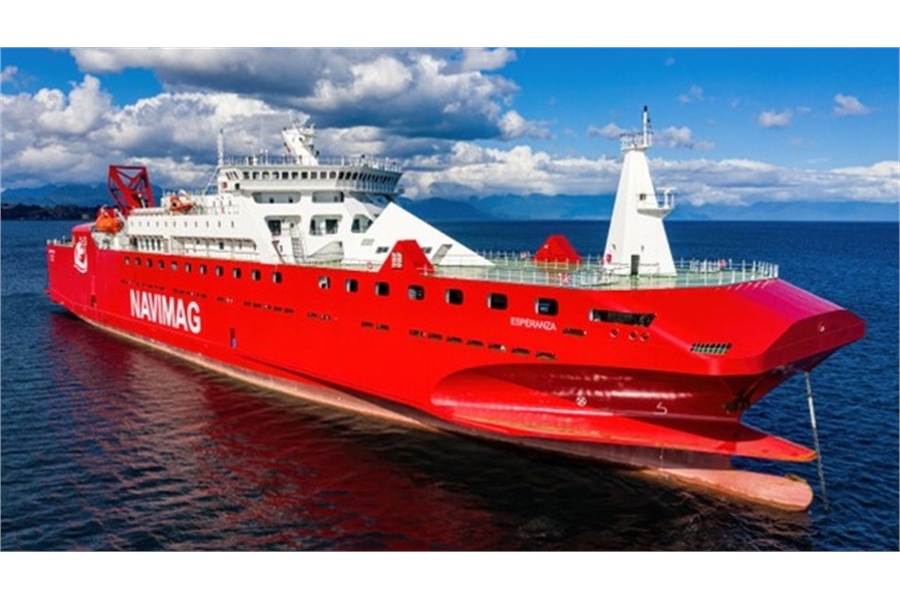

Two of the firm’s concepts were developed in a new ferry,
the Esperanza that is sailing for Navimag Ferries in the Patagonia region of
Chile. The most eye-catching element of the design is a new bow shape that
NaviForm is calling the winged bow.
According to the designers, the new geometry of the bow on
the ocean-going vessel reduces the resistance of the hull, resulting in either
higher speed or less power, fuel consumption, and GHG emissions. It also
reduces motions in waves, shown both in testing and in operation to be 50 percent
lower than conventional bow fitted hulls. The design is also reported to
eliminate slamming, making it possible to design a lighter structure. Finally,
they say the new bow concept also increases the capacity of the hull or reduces
its length and cost for a given capacity.
Similarly, they have also developed a new geometry of the
stern bulbs that spins the flow of water into propellors counter to their
rotation. NaviForm says that this increases efficiency.
The Esperanza design combines these technologies. The
492-foot long vessel can carry over 240 passengers and has 1800 vehicle lane
meters on two decks. The 10,500 mt displacement vessel, however needs only 2500
kW into her propellors (1250 kW each) to sail at 14 knots as a result of these
design technologies says NaviForm.
The propulsion equipment was developed by Wartsila’s
technology group in consultation. It consists of two Wartsila 20 main engines,
two Wartsila controlled pitch propellors (CPP), and two Wartsila gearboxes.
The designs also are presenting several new concepts that
are being combined in the design of a large river container carrier for the
service on the Mississippi River. One element is the Exoskeleton Structure,
named for the fact that it is fitted outside the hull to provide the required
longitudinal strength, rather than relying on the hull structure. This allows
ocean-going and river hulls to be lighter and in the case of river hulls, also
extremely shallow.
NaviForm also developed a zero wave bow for self-propelled
river vessels or barges, which as its name suggests generates no bow wave.
According to the designers, this eliminates the problem of shore erosion, which
limits the speed of river or coastal vessels. Featuring two side skegs with a foil
between them, it captures the flow and directs it under the hull, rather than
to the sides in the form of waves which represent wasted energy and cause shore
erosion
Construction of the first 594-foot hull is due to begin in
the first quarter of 2021, with three sister ships to follow at six month
intervals. With an 8.8-foot draught, the hull depth is only 12.8 feet and steel
weight only 2300 mt. It will carry 1700 TEU at speeds up to 16 knows and it is
LNG powered.
